Detailed description
FEATURES&BENEFITS
-
1/4"~4" (DN6~DN100)
-
W. P.: 1000WOG(PN64)
-
W. T.:-20℃ ~200℃ (-4℉~392℉)
-
Investment casting
-
Thread type: ASME B1.20.1(NPT)/DIN2999/BS21 ISO 7/1 / EN10226
|

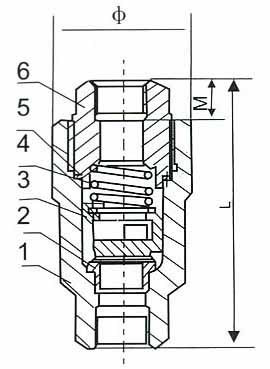

ITEM |
PARTS |
MATERIAL |
|
1 |
BODY |
ASTM A351-CF8M/CF8 |
|
2 |
BONNET |
|
|
3 |
SPRING |
AISI 316 / AISI 304 |
|
4 |
SCREW |
AISI 316/304 |
|
5 |
DISC |
|
|
6 |
SEAL |
PTFE |
|
Size DN(mm) |
ZG |
H |
L |
|
15 |
1/2 |
73 |
43 |
|
20 |
3/4 |
85 |
48 |
|
25 |
1 |
95 |
55 |
|
32 |
1-1/4 |
113 |
73 |
|
40 |
1-1/2 |
138 |
86 |
|
50 |
2 |
156 |
98 |
