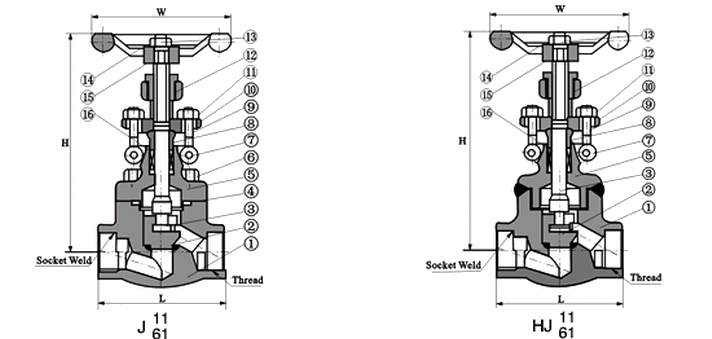

CLASS 800 FORGED GLOBE VALVE

NO

NAME

CS to ASTM

AS to ASTM

SS to ASTM

Type A105

Type F22

Type F304(L)

Type F316(L)

1

BODY

A105

A182 F22

A182 F304(L)

A182 F316(L)

2

GASKET

Corrugated SS+graphite

SS+PTFE

3

BOLT

A193 B7

A193 B16

A193 B8

A193 B8M

4

PIN

A276 420

A276 304

5

PACKING GLAND

A276 410

A182 F304(L)

A182 F316(L)

6

BOLT

A193 B7

A193 B16

A193 B8

A193 B8M

7

NUT

A194 2H

A194 4

A194 8

A194 8M

8

NUT

A276 410

9

NUT

A194 2H

A194 4

A194 8

A194 8M

10

NAMEPLATE

SS

11

HANDWHEEL

A197

12

GLAND

A216 WCB

A351 CF8

13

PACKING

Flexible Graphite

PTFE

14

BONNET

A105

A276 304

A182 F304(L)

A182 F316(L)

15

STEM

A182 F6

A182 F304

A182 F304(L)

A182 F316(L)

16

DISC

A276 420

A276 304

A276 304(L)

A276 316(L)

17

MEDIUM

WATER,OIL,GAS

WATER,OIL,GAS

ACID,WATER,OIL,GAS

18

TEMPERATURE

-29℃～425℃

-29℃～550℃

-29℃～550℃

SIZE

S

L

T

W

H ≈

WEIGHT（KG） ≈

INCH

DN

JNSI

JIS

800Lb

2500 Lb

A N S I

ISO、BS

J I S

800Lb

2500 Lb

NPI

RC

PT

1/2

15

21.8

22.2

140

186

1/2

125

321

2.2

12.3

3/4

20

27.1

27.7

140

186

3/4

125

321

2.4

11.6

1

25

33.8

34.5

140

186

1

160

321

4.1

10.8

1 1/4

32

42.6

43.2

178

232

1 1/4

160

380

6

26.0

1 1/2

40

48.7

49.1

178

232

1 1/2

180

414

7

26.4

2

50

61.1

61.1

216

279

2

200

502

10.5

43.8
